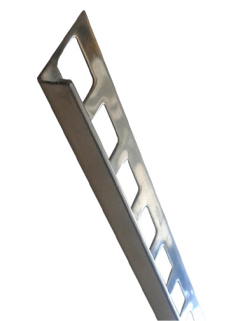

The Right Edge, also called corner wand is used for a vertical outgoing angle. It is used primarily to protect the edge of the tile but can also serve as a stair tread for a more refined and more discreet finish. However it does not have the anti-slip part .. Production is done in desired size.

TECHNICIAL SPECIFICATIONS
Profile No:PS 2121 & PS 2122 & PS 2123
Profile Description:Stainles Steel L Profiles
Plaster Thickness:7mm – 9mm – 15mm – 22mm
Plaster Thickness:0.50mm – 0.80mm ± 0,04 mm
Profile Wing Width7x7mm – 9x9mm – 15x15mm – 22x22mm
Raw Material:Stainless steel No 1.4301 304 Quality
Profile Lengths:Production is done in desired size.
Number of Profiles in Packaging:25
Related Norms:EN 10088-2 + DIN 59381 + ISO 1163-1
